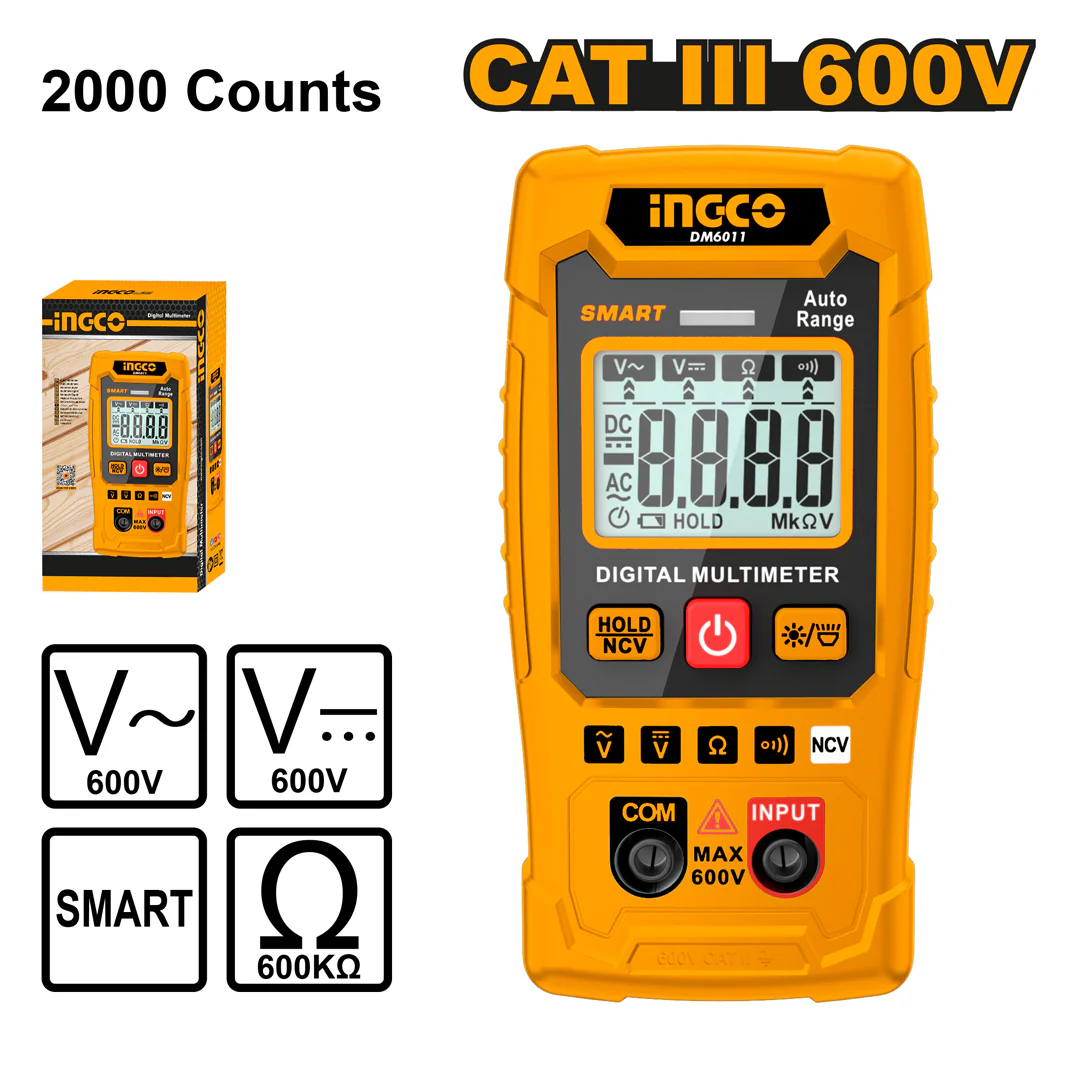

Model: DM6011

Specification

Environment:

Category: CAT.II 600V

Pollution Level: 2

Altitude: < 2000m

Working Temperature & Humidity: 0~40°C (<80% RH, <10°C non-condensing)

Storage Temperature & Humidity: -10~60°C (70% RH, remove battery)

Temperature Coefficient: 0.1 x accuracy / °C (<18°C or >28°C)

Maximum Voltage (Terminal to Earth Ground): 600V

Sampling Rate: Approximately 3 times per second

Display: 4000 counts

Over Range Indication: "OL"

Low Battery Indication: Displayed

Input Polarity: Automatically displayed

Power Requirements: 2 x 1.5V AAA batteries

Accuracy:

Accuracy Applies Within: One year after calibration

Reference Conditions: Environment temperature 18°C to 28°C, relative humidity ? 80%

Accuracy Rating: ± (%reading + digits)

Other:

Power Supply: 2 x AAA alkaline batteries

Dimensions (LxWxH): 6 x 2 x 11.5 cm

Features:

• Auto-Ranging: Automatically selects the appropriate measurement range for convenience.
• Smart Design: Provides essential features for various electrical testing tasks.
• Durable Construction: Built for reliable and long-lasting performance.
• User-Friendly Interface: Simple to operate and read.
• Versatile Applications: Suitable for a wide range of electrical testing, including:
• Voltage measurement (DC and AC)
• Current measurement (DC and AC)
• Resistance measurement
• Continuity testing
• Diode testing
• Capacitance measurement
• Frequency measurement
